Description

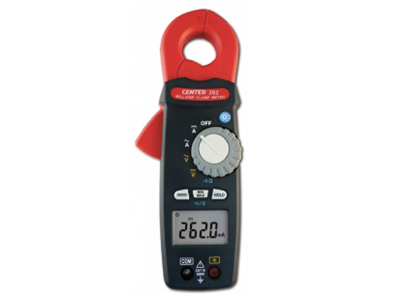

Clamp meter
Center technology has a wide range of clamp meters including a new flexible sensor model. This meter is notable in the process field because it has 0.1mA resolution and it can be used to successfully measure 4-20mA loop current. while the accuracy in this range is only +/-1mA, it is sufficiently accurate and stable enough for measuring process loop current without breaking the loop – a time saving experience. 20mA DC current reading is stable & insensitive to position of the wire in the jaw space. The meter comes with soft carry case and test leads
- DC amps 500.0mA, 5000mA and 10.00A
- AC amps 500.0mA, 5000mA and 20.00A
- DCV and ACV 50V to 300V
- Resistance 500, 5K, 50K, and 500K ohms plus continuity buzzer.
- Jaw opening 23mm
- Sampling rate: 2 times/sec
A good tool in the process toolbox!
