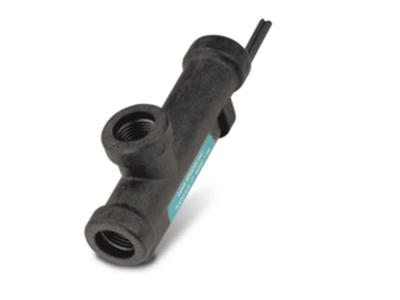

Piston type 14mm 0.4-6L/min, FS-4, GM-122345

$245.00

Low Cost, Molded Plastic Construction, the most widely used, reliable and rugged flow switches from GEMS. The FS-4 Series makes flow protection economical for a broad range of industrial applications such as welders, lubrication systems, medical sterilizers and laundry chemicals dispensing.

Part No: GM-122345, Flow switch, 3/8″NPT, 6 litres/minute

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

1 in stock (can be backordered)

SKU: GM-122345 Category:

Description

FS-4 Series –Low Cost, Molded Plastic Construction

  • Materials: Ryton® R4, SS, Viton®, Epoxy
  • Operating Temp: -17.8 to 107.2°C
  • Operating Pressure: 16 bar @ 20°C
  • Port size: 9/16″ – 18 UNF
  • Filter to 50 microns
  • 0.4-6 L/min in Ryton with 9/16 – 18 UNF
Compact, yet extremely rugged, the FS-4 Series makes flow protection economical for a broad range of industrial applications such as welders, lubrication systems, medical sterilizers and laundry chemicals dispensing. They use the same hermetically sealed SPDT as our precision FS-925, & are ideal when used in moderate pressure & temperature applications.

 Downloads:   Data sheet
