Universal I/P to frequency O/P, PR-4222

$637.00

PR-4222 convert most analog and sensor signals to frequency output NPN, PNP and TTL

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327

2 in stock (can be backordered)

SKU: PR-4222 Category:

Description

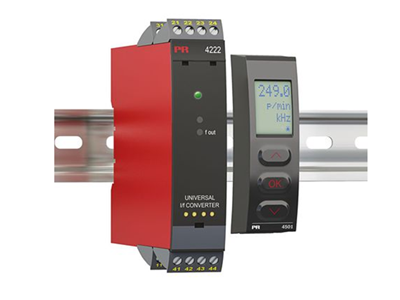

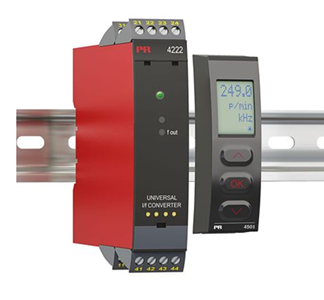

Frequency transmitter

PR-4222 is a new release module from PR Electronics Denmark with DIN mount housing with plug-in screw connectors. It is programmed with the 4501 clip on display which is common to the other 3 universal modules in this family. It has 3 way isolation to . 2.3 kVAC / 250 VAC. It can convert most analog signals to frequency for direct input to PLCs with high level isolation

Universal I/f converter

  • Universal Input : RTD, Thermocouple, Ohm, mA, V and potentiometer input
  • Convert to frequency output in the range 0.001 to 25KHz
  • Programmable
  • Power supply universal 21.6-253VAC, 19.2-300VDC
  • Transmitter power supply built in – Min 16VDC
  • Program with clip on low cost indicator/programmer module
  • Part of the NEW PR4100 Family with 5 year manufacturer warranty

Downloads:   Data sheet       User manual
