Description
Signal calculator

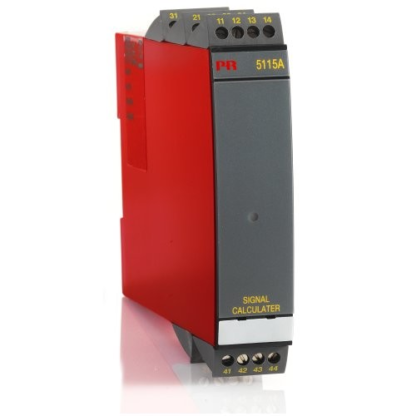

Two independent universal channels with maths functions, redundancy sensors and 5 way isolation. The PR-5115 is a special universal application module for special applications. It is programmed using the PC USB interface 5909. The two universal inputs can be independent, one a redundant backup for the other, or combined using a variety of maths functions. When using thermocouple inputs the CJC connectors must be ordered separately. Functions can be rapidly implemented using a PC for programming and function monitored with LEDs on the instrument face. 42 modules can be mounted per meter of rail.
- Redundancy Measurement with 2 input signals
- Signal Calculation with 4 arithmetic operators
- Duplication of the input signal on dual isolated outputs
- Input of RTD, Ohm, TC, mV, mA, and V with selectable output type on each channel
- Universal AC/DC supply
- 5 port 3.75 KV isolation
- Dual transmitter power supplies
- Programmable Filter
Please remember to order PR-5910 and PR-5913 for TC inputs with an internal CJC
Program the PR-5115A to a selected application using the configuration program PReset
