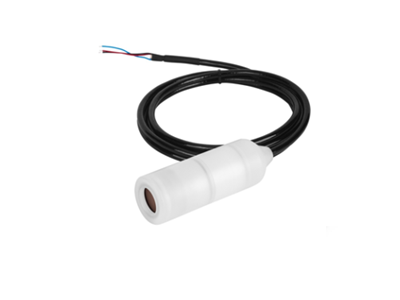

HydraTough H46 for corrosive environments

$900.00 – $1,540.00

With body materials PP or PVDF and cable insulation PUR or PTFE and ceramic [alumina] measuring cell and diaphragm. For accessories click here.

Need more info?

Stock comes from different warehouses, delivery may take 1-4 working days. If urgent check availability at toll free: 0800 323 327;
Clear
SKU: N/A Category:

Description

Hydrostatic submersible level transmitters

  • Ranges 0-1 , 0-200M WG  ceramic measuring cell with FKM ‘O’ rings
  • Temperature limit 70℃
  • Cable lengths to 200M
  • Power requirement 10-30V DC
  • Output 4-20mA with HART stability better than 0.2%
  • Ratiometric and voltage outputs available in 3W
  • Adjustable damping time

A range of options including weights and vented terminal boxes with lightning protection. ECEFast can set up the transmitters for span and damping time before shipment.

Delivery is expected to be 2-3 weeks maximum from order.

Downloads:   Data sheet

Additional information

Sensor material

PP, PVDF
Range

0-5m, 0-10m
Cable length

10m, 15m
Cable material

PUR, PTFE
