Description

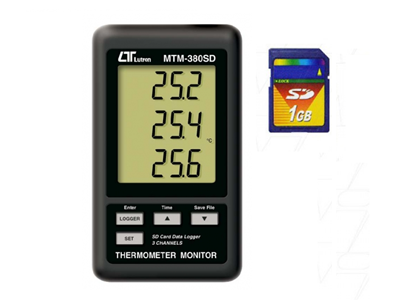

Datalogger
Data logger for 3 channels thermocouple type K with digital display of all channels. Logged data is saved to SD card (not included) which can be transferred to PC for analysis using a standard spread sheet program. No cables or software required, although USB cable and PC software is optionally available. Ambient rating is 50C so logger must be kept away from heat sources. ECEFast can supply thermocouples for any application and NATA certificate for the system if required. Features:
- Type K input -100 to 1300C X 3
- Resolution 0.1C – accuracy 0.5%+/-1C
- Log to SD card to 16Gb – analyse on PC using spread sheet ( SD card not included)
- Optional USB cable and PC software
- Uses AAA batteries – typical life 1 min interval = 1 month
- Can use plug pack 9VDC for long term monitoring
- Record at intervals from 5 seconds to 600 seconds
- Size 132x80x32mm 285gm – wall bracket included
